Volumetric Dough Divider

★★★★★

Stock Code

: MVA-KS-1500

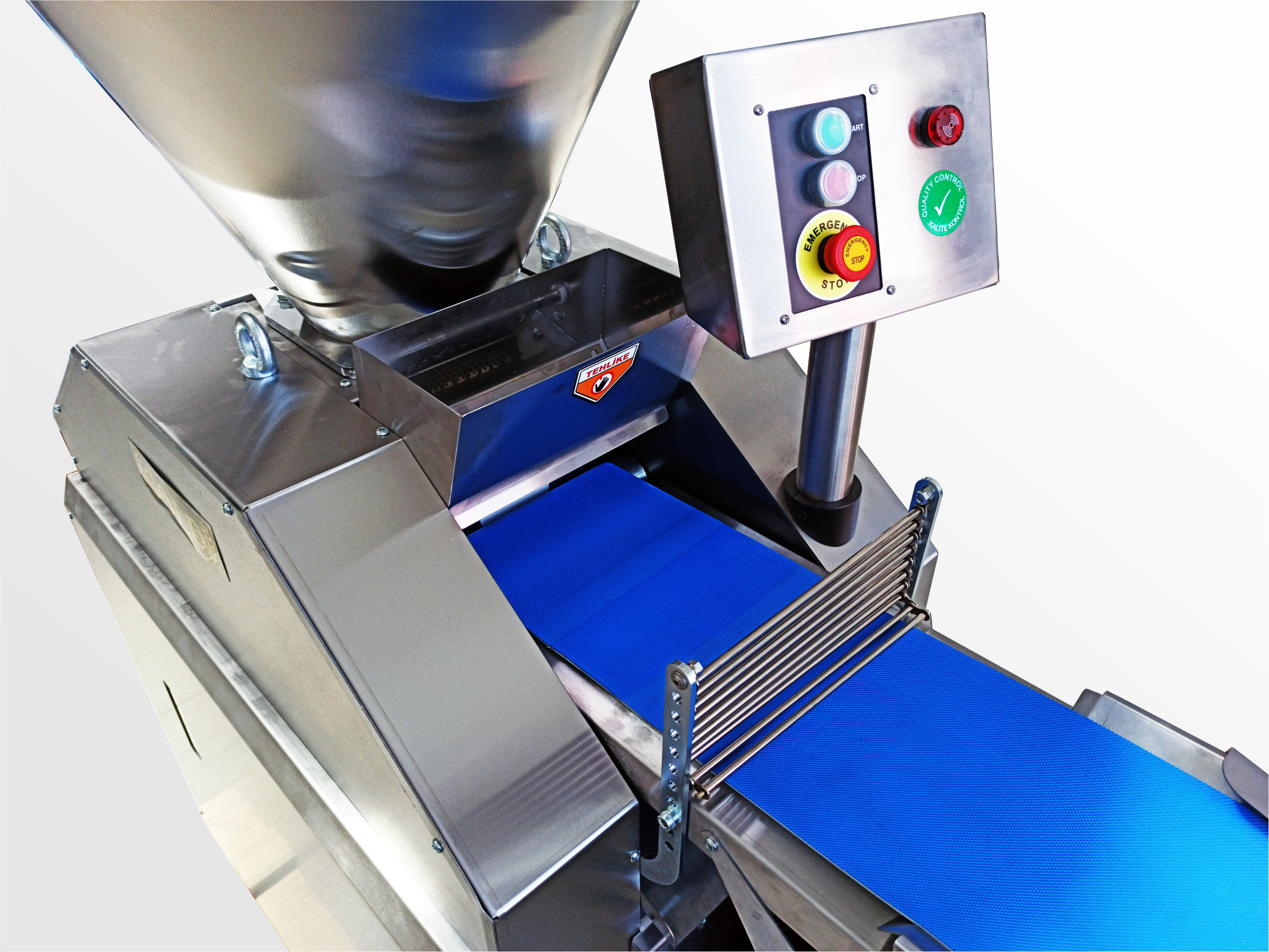

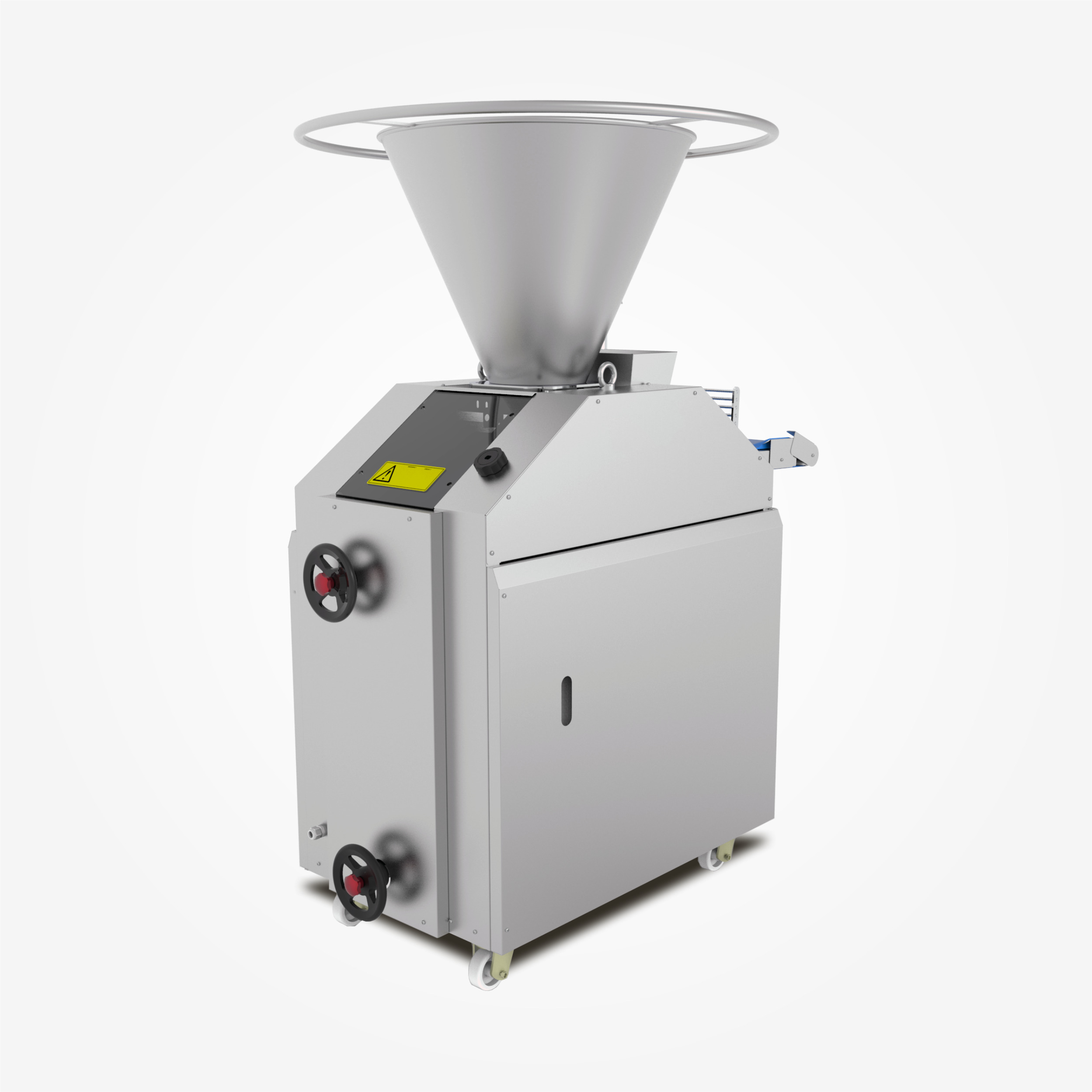

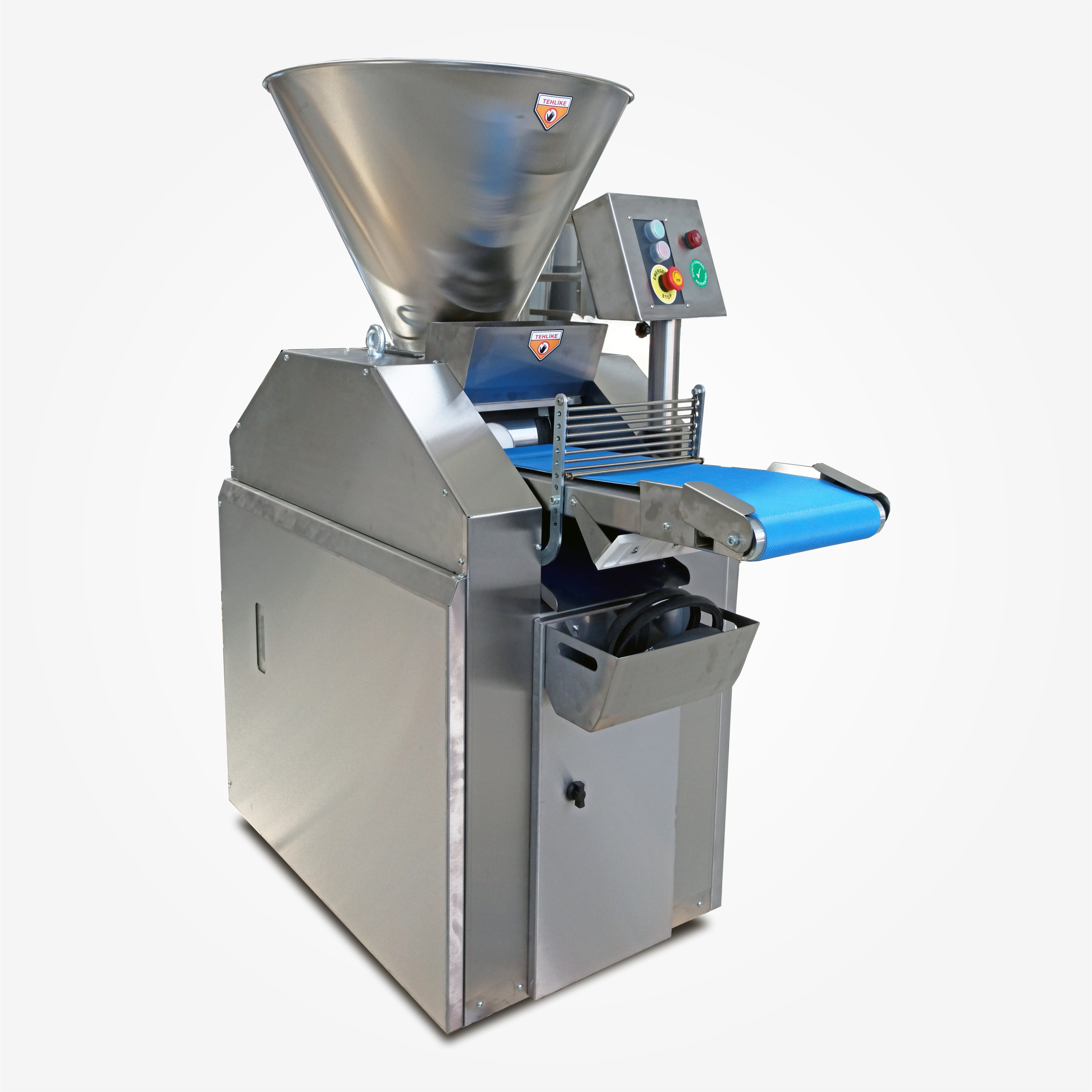

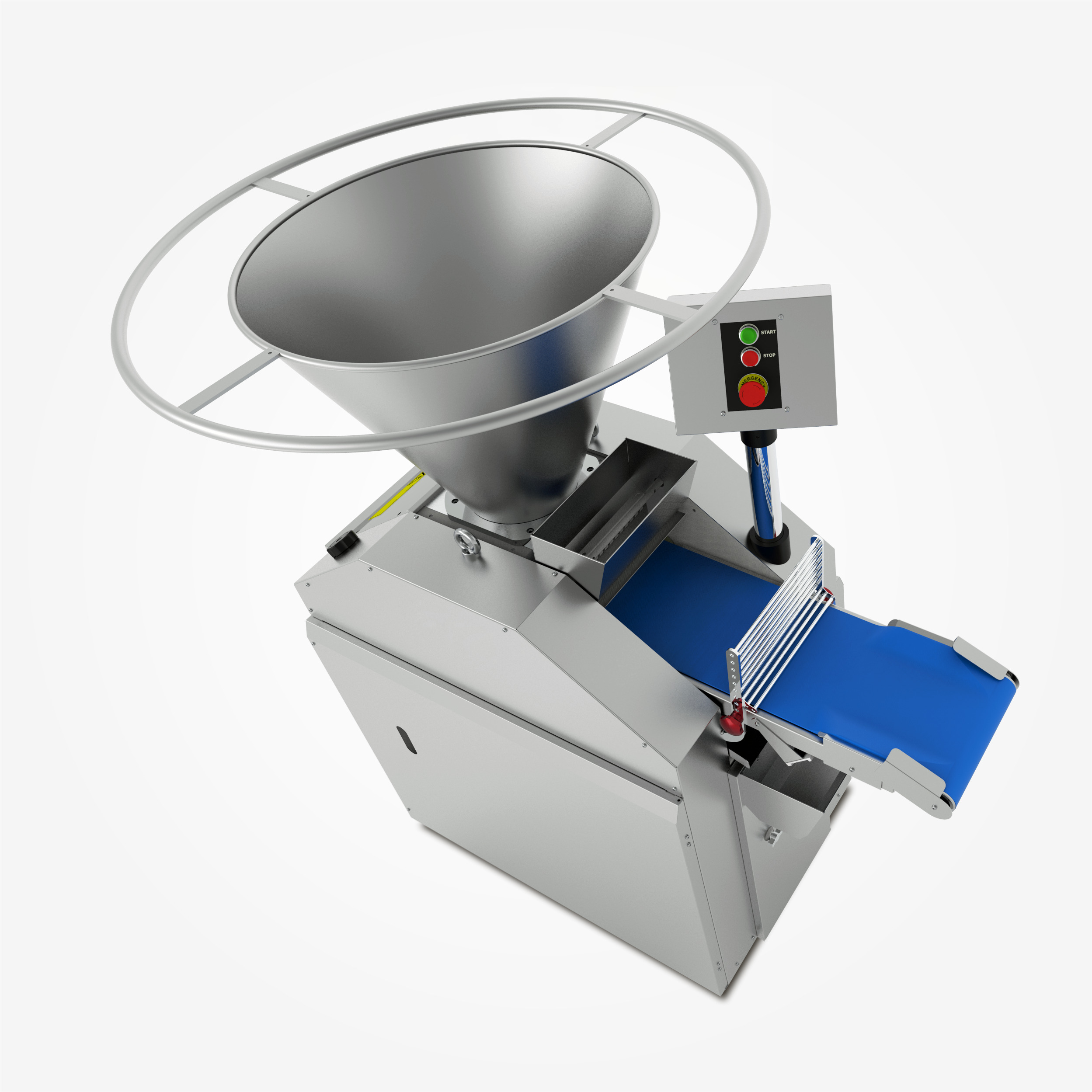

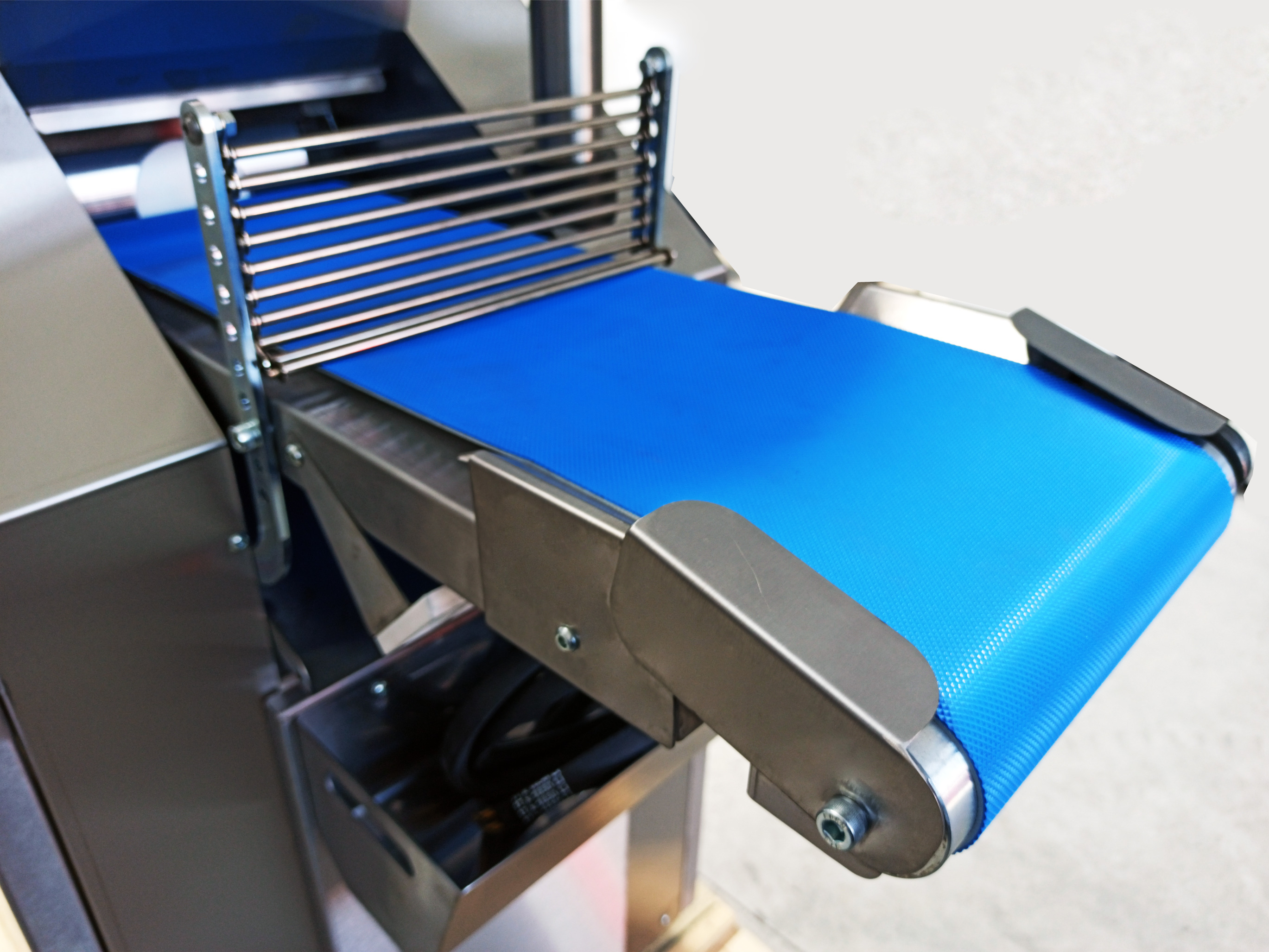

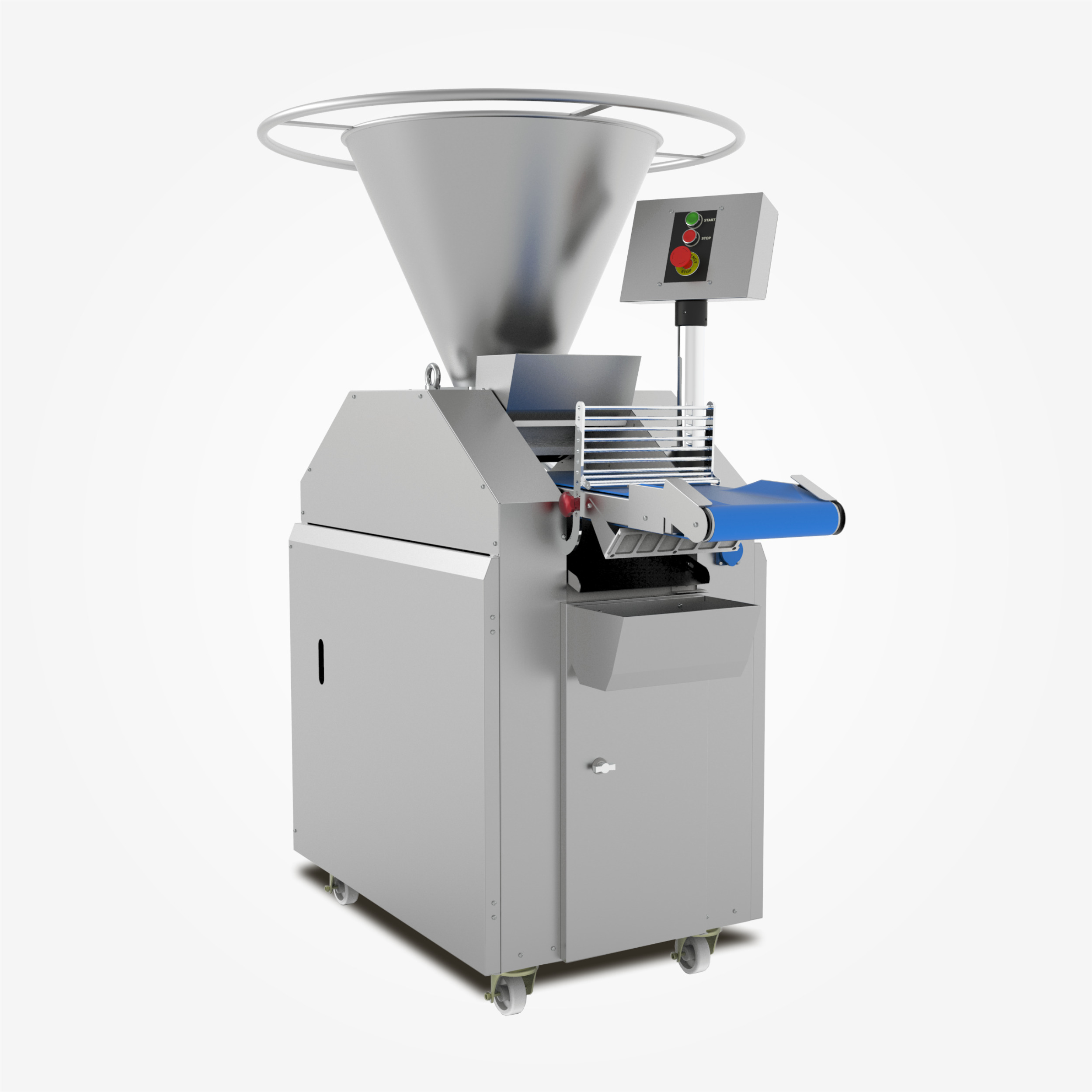

MOVA volumetric dough divider machine, uses the latest system of the dough processing technology, cuts the dough at the requested weight without pressing and harming the dough. All the surfaces contacting the dough are made of stainless steel. It cuts the dough with its weight due to the vacuum generated by piston cylinder movement. The lubrication system is automatically operated. Thus, the machinery is provided to have longer life. All surfaces are lubricated with the oil which is compatible of food. The hopper is made of stainless steel.

Optional :
- Digital control panel
- Touchscreen control panel
- Hopper with Teflon coated
- Speed controlling device (variator)
- Larger hopper (90kg dough capacity)

ORDER FROM WHATSAPP

Product Description

Model	Unit	M-KS1500	M-KS1500D
Capacity	pcs/h	1800	3600
Dough cutting weight* / piston diameter	g	50 - 200 / Ø 70 80-400 / Ø 90 100 - 600 / Ø 110 200 - 1000 / Ø 130	50 - 200 / Ø 70
Number of pistons	pcs	1	2
Hopper capacity	kg	60	60
Width (W)	mm	665	665
Length (L / L1)	mm	1400 / 1780	1400 / 1780
Height (H)	mm	1520	1520
Height of dough exit (H1)	mm	960 ± 80 / 95	960 ± 80 / 95
Weight adjusting system		Analogue, Digital or Touch Screen
Electrical power	kW	1.5	1.5
Weight of machine	kg	405	415
